Description

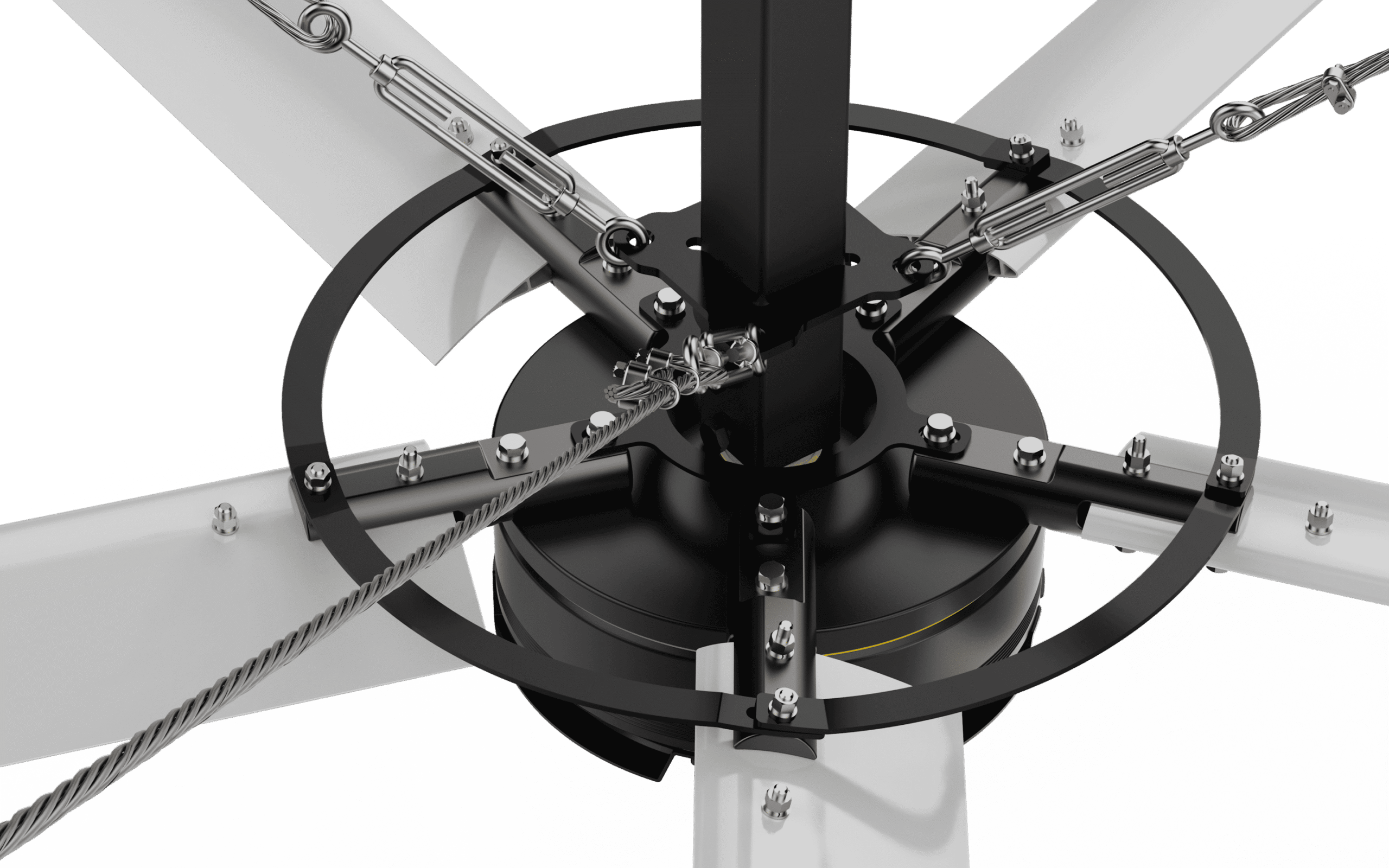

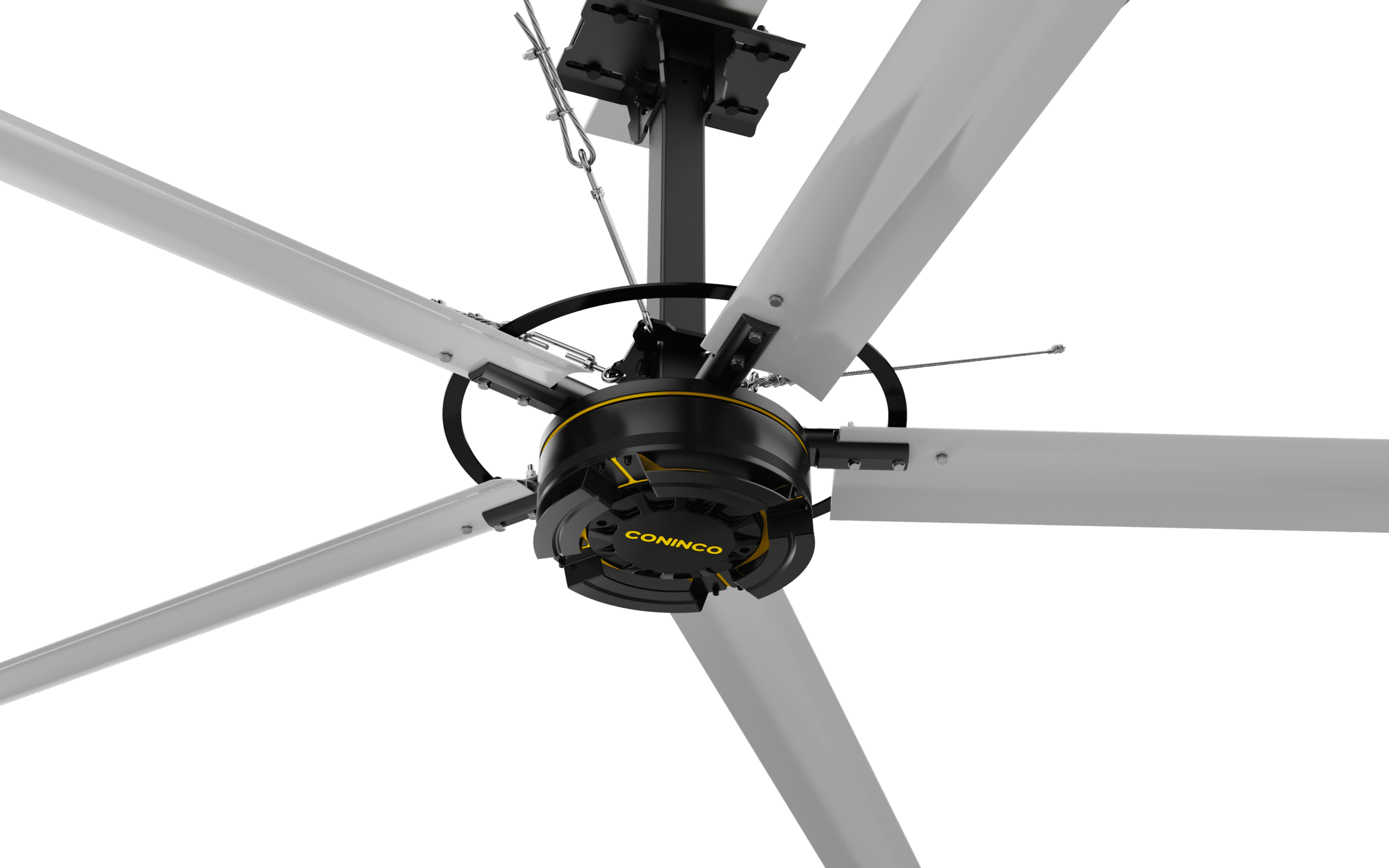

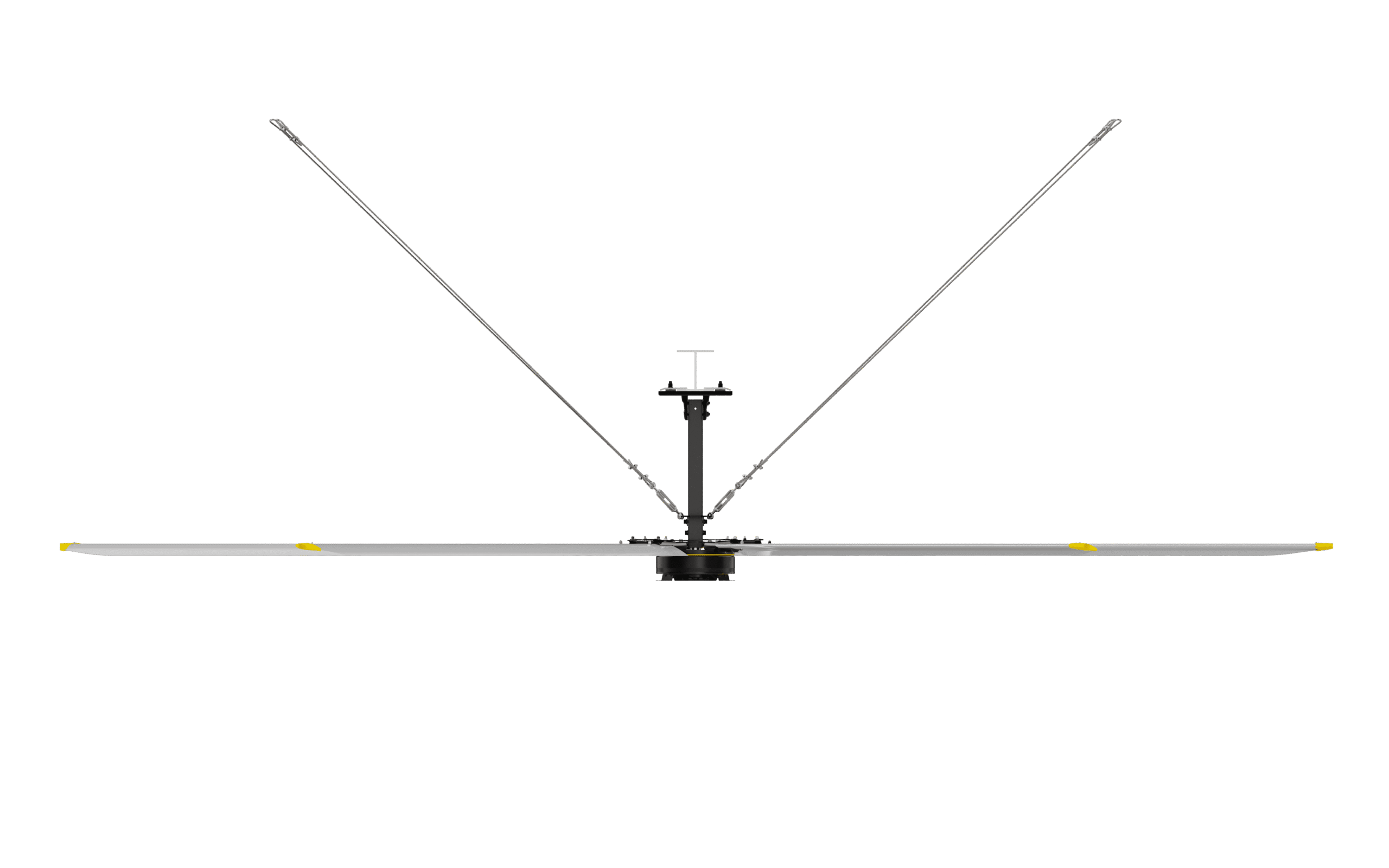

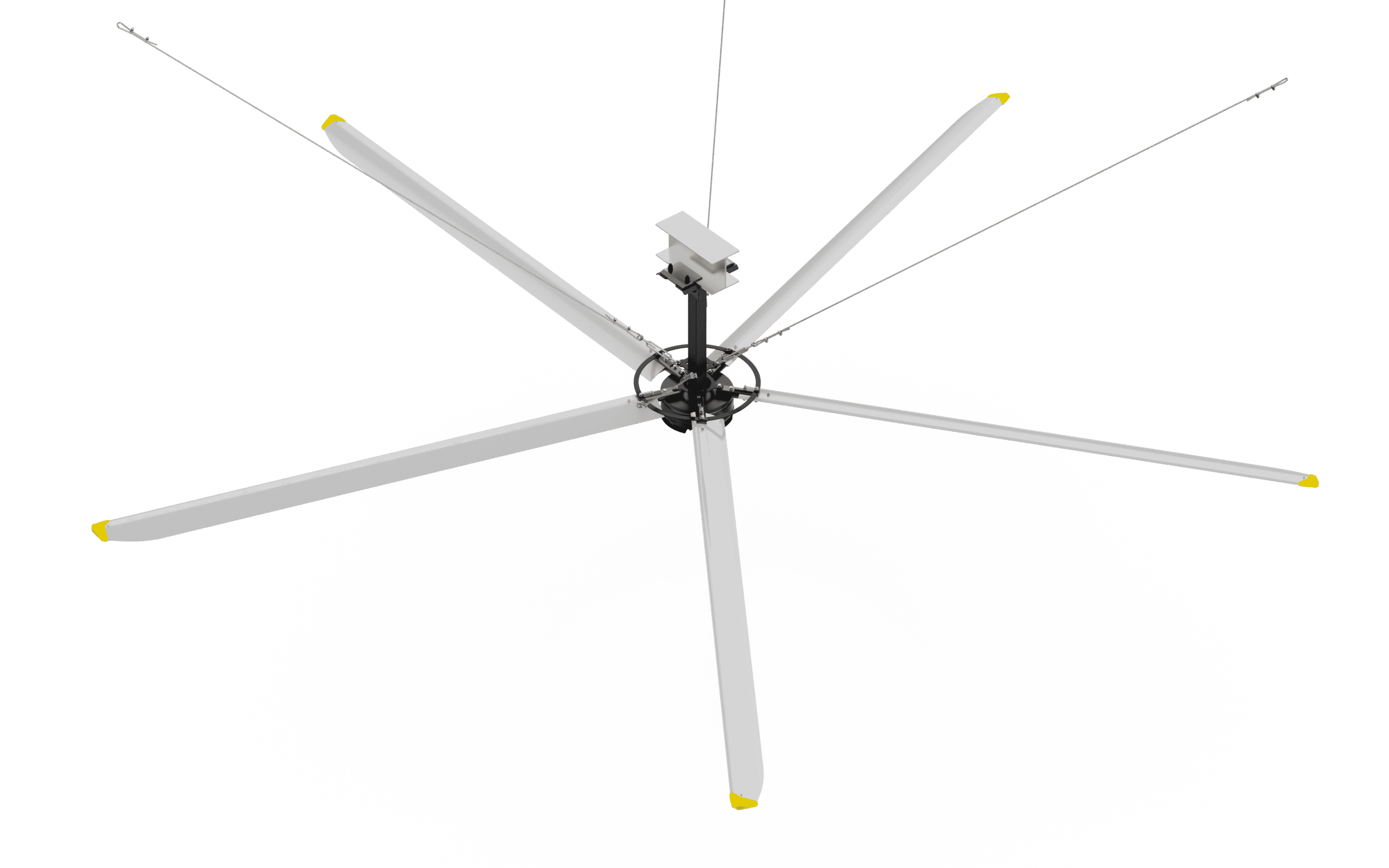

SuperAir fan products leverage advanced PMSM (Permanent Magnet Synchronous Motor) technology to deliver powerful and energy-efficient large-scale airflow.

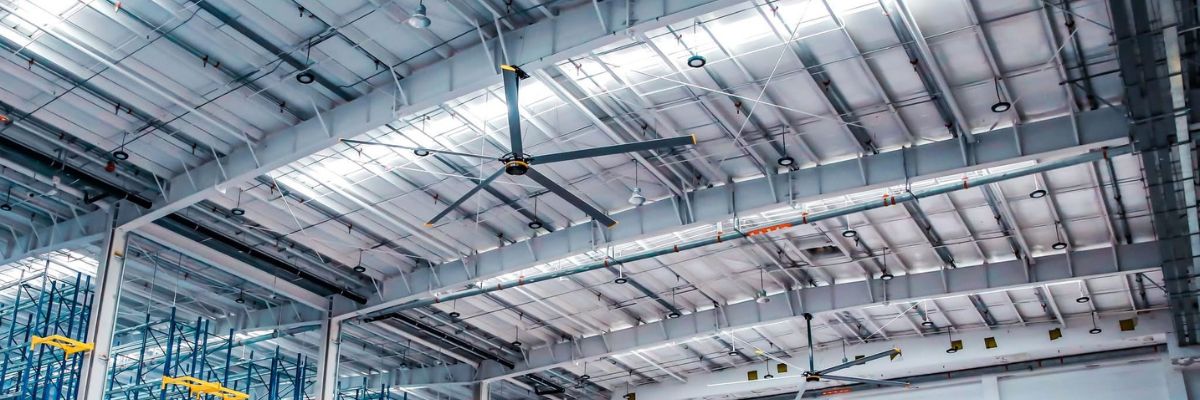

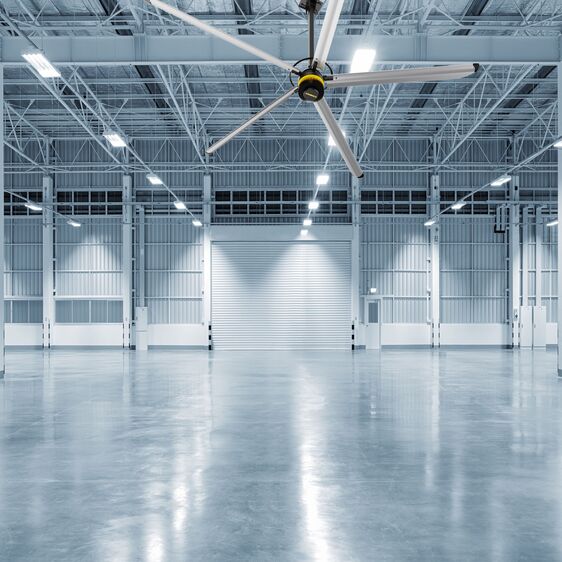

SuperAir fan products ensures consistent and silent operation, creating comfortable environments across vast areas while significantly reducing energy consumption. Ideal for industrial, commercial, and public spaces, SuperAir fan products enhances air circulation efficiency, minimizes maintenance, and maximizes long-term reliability, making it a sustainable choice for large venues.
Key benefits for customers include:
- Energy Savings: Lower energy costs by enhancing cooling and heating efficiency.
- Comfort: Provide consistent airflow, eliminating hot spots and improving overall air quality.
- Noise Reduction: Quiet operation ensures minimal disruption in workplaces or public areas.
- Durability: Built to withstand demanding conditions, ensuring long-term reliability.
- Versatility: Suitable for industrial, commercial and agricultural applications.
Technical Parameters
| Fan | Diameter | Air volume,m³/min | Weight(kgs) | Max speed | Inuput power | Full load current |
|---|---|---|---|---|---|---|
|
SA5-73 |
24ft (7.3m) |
13600 |
234 lb (106kg) |
56RPM |
1.3kw |
5.1A |
|
SA5-61 |
20ft (6.1m) |
12200 |
223 lb (101kg) |
64RPM |
1.2kw |
3.8A |
|
SA5-55 |
18ft (5.5m) |
12030 |
205 lb (93kg) |
72RPM |
0.7kw |
2.9A
|
|
SA5-50 |
16ft (5.0m) |
9680 |
194 lb (88kg) |
64PRM |
0.45kw |
2.2A |
|
SA5-45 |
15ft (4.5m) |
9280 |
190 lb (86kg) |
72RPM |
0.32kw |
1.6A |
|
SA5-40 |
13ft (4.0m) |
8750 |
185 lb (84kg) |
80RPM |
0.23kw |
1.1A
|
|
SA5-35 |
11ft (3.5m) |
8330 |
179 lb (81kg) |
90RPM |
0.18kw |
0.9A |
